MidCare

Medical laser for Home Care

MIDCARE is a medical laser intended for treatment of muscles, joints and tendons. Laser light is applied to tissue to reduce pain, inflammation and to promote tissue repair.

Safe • Easy • EFFEcTIVe

Let your patients treat themselves at home
Rent a laser to those patients who find it difficult to come to the clinic
Rent a laser so your patients can get treatment more frequently

Design awards

Medical laser, MidCare, Irradia, Red dot award 2019

Medical laser, MidCare, Irradia, iF Design Award 2020

6
5
4
3
2
1

FUNCTIONS AND ATTRIBUTES

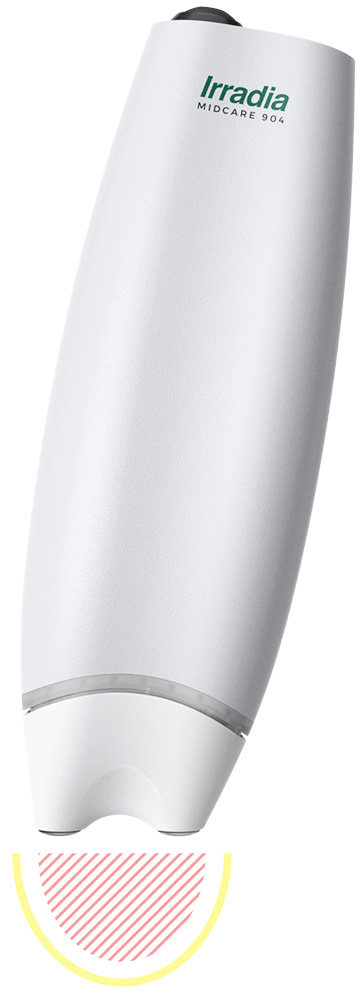

MIDCARE was developed specifically to meet the requirements for safe use in a home care environment. The laser device is ergonomically designed for self-treatment. It provides several grip options and the ergonomic angle facilitates holding the device against different parts of the body. Laser emission starts when the device is placed in contact with the skin and slight pressure is applied. The materials have been chosen to meet the requirements and expectations of a high-quality product.

1. LASER APERTURe/LASER DIODes

The laser emitting diodes are placed at a slight angle to improve the contact between the laser apertures and the skin to optimize light penetration into the tissue

2. POWDER PAINTED ALUMINUM FRONT

The powder coated aluminum front and the anti-reflective coated lenses ensure long-term use and allow cleaning without deterioration.

3. FEEDBACK / BLUE LIGHT INDICATOR

A semi-transparent ring emits blue light indicating that laser emission is activated. Feedback is also given by visible and audible signals when sufficient laser energy has been delivered and when it is time to change the treatment point.

4. CONCAVE SHAPE FOR BETTER GRIP

The grip surface has a concave shape along the length of the device, which provides a better grip that is more comfortable to hold, and reduces the risk of dropping the device.

5. SCREW FOR REPLACING BATTERIES

MIDCARE is internally powered by 6 exchangeable AAA-batteries and has a battery-life of approximately 3 treatment hours

6. Power on/off

Accessible button on the back to turn the laser on and off.

TECHNICAL SPECIFICATIONS

Select a laser to see its specifications.

MIDCARE 635
WAVELENGth
635 nm
BEAM TYPE
Red, visible
NO. OF LASER DIODES
2
AVERAGE OUTPUT POWER
2 x 50 mW
TOTAL OUTPUT POWER
100 mW
PEAK POWER
450 mW
BEAM SHAPE
Divergent
BATTERY TIME
3 hours
BATTERY TYPE
6 pcs LR03 AAA 1.5 V
LASER CLASS
3R
ART.No.
MIDCARE 635
MIDCARE 904
WAVELENGth
904 nm
Beam type
Infrared
NO. of laser diodes
2
average output power
2 x 30 mW
total output power
60 mW
peak power
25 000 mW
beam shape
Divergent
battery time
3 hours
battery type
6 pcs LR03 AAA 1.5 V
Laser class
1
ART.No.
MIDCARE 904
